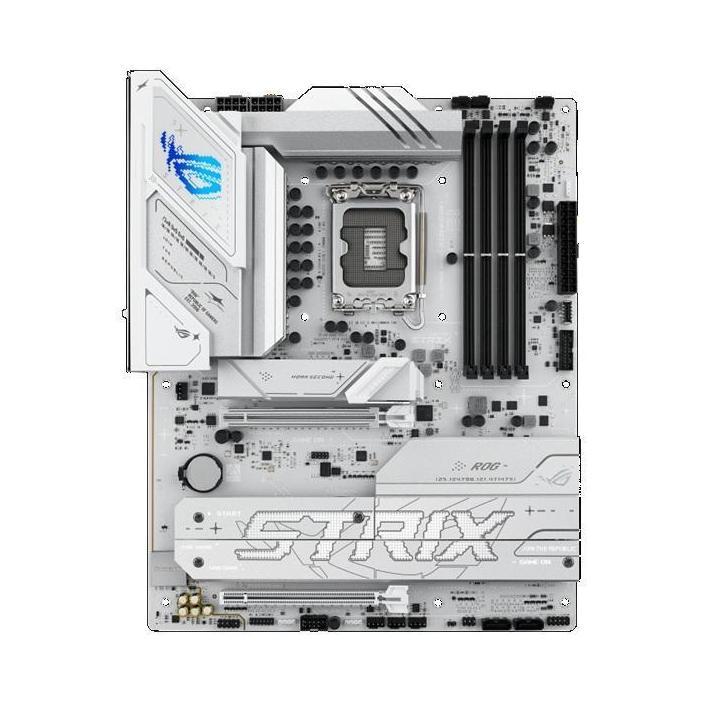

ASUS ROG STRIX B860-A GAMING WIFI DDR5 ATX Motherboard 256GB 1x PCIe 5.0 4x M.2

The ASUS ROG STRIX B860-A GAMING WIFI is a high-performance ATX motherboard designed for advanced AI PC applications and gaming enthusiasts. It supports Intel® Core™ Ultra Processors (Series 2) with features such as Turbo Boost Technology 2.0 and XMP memory support.

Chipset

• Intel® B860 Chipset

Memory

• 4 x DIMM slots, max. 256GB DDR5
• Supports up to 8600+MT/s (OC)
• Dual channel memory architecture
• ASUS Enhanced Memory Profile III (AEMPIII)

Graphics

• 1 x DisplayPort
• 1 x HDMI™ port
• USB4® (20Gbps) port with USB Type-C® display outputs

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1: Key M, type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2: Key M, type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3: Key M, type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4: Key M, type 2280 (supports PCIe 4.0 x4 mode)

Ethernet

• 1 x Intel® 2.5Gb Ethernet

Bios and OS Support

• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System: Windows 11 (22H2 later)

The ASUS ROG STRIX B860-A GAMING WIFI offers fast data transfers and versatile connectivity options, making it an excellent choice for users who demand top-tier performance and flexibility.
