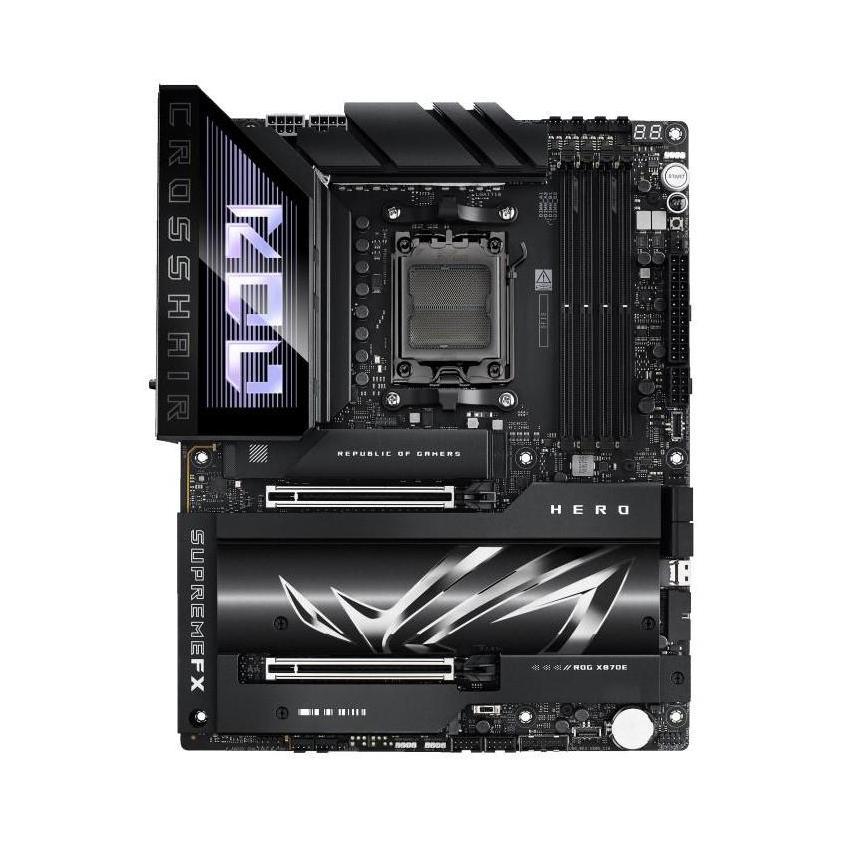

ASUS ROG CROSSHAIR X870E HERO AM5 DDR5 256GB 5x M.2 PCIe 5.0 WiFi 7 ATX Motherboard
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 278 mm |
|---|---|
| Width | 278 mm |
| Height | 68 mm |
Product Details
Product Details
The ASUS ROG CROSSHAIR X870E HERO is an advanced AM5 motherboard designed for AMD Ryzen™ 9000 Series processors. It features robust power delivery and thermal management to unleash peak performance. The board supports up to 256GB of DDR5 memory with speeds up to 8200+MT/s (OC) for the Ryzen™ 9000 series.
Display
- 1 x HDMI port*
Graphics
The graphics specifications may vary between CPU types. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
- 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
Storage
- 5 x M.2 slots supporting PCIe 5.0 x4 mode for the Ryzen™ 9000 series and PCIe 4.0 x4 mode for other supported processors.
- 1 x SlimSAS connector
- 4 x SATA 6Gb/s ports*
Connectivity
- Intel® 2.5Gb Ethernet
- Realtek 5Gb Ethernet
- Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) with 2x2 Wi-Fi 7 (802.11be)
- Bluetooth® v5.4
- Rear USB: 2 x USB4® (40Gbps), 8 x USB 10Gbps, and additional ports via headers.
- Front USB: 1 x USB 20Gbps with power delivery support up to 60W PD/QC4+ and additional ports via headers.
BIOS & Manageability
- 256Mb Flash ROM, UEFI AMI BIOS
- Manageability features include WOL by PME, PXE
The ASUS ROG CROSSHAIR X870E HERO is designed for the latest AMD processors and offers comprehensive support for PCIe 5.0 and DDR5 technologies.
