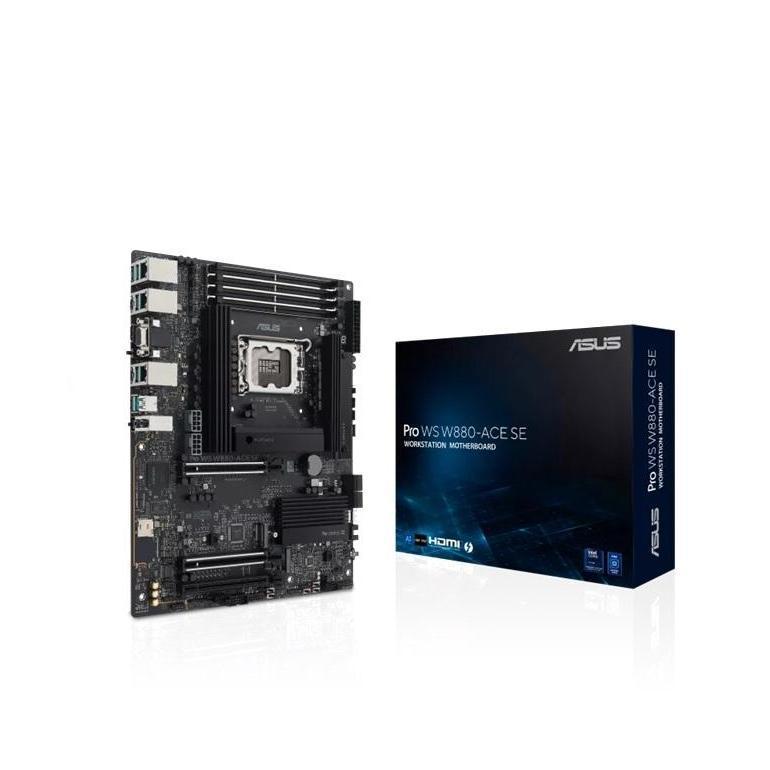

ASUS Pro WS W880-ACE SE Intel W880 ATX LGA1851 DDR5 256GB ECC PCIe 5.0 4x M.2...

The ASUS Pro WS W880-ACE SE is a high-performance workstation motherboard designed for professionals requiring maximum computing power and flexibility. It supports the latest Intel® Core™ Ultra Processors (Series 2) with advanced features such as Turbo Boost Technology 2.0, Turbo Boost Max Technology 3.0, and vPro technology.

Display

• 1 x HDMI™ port
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supporting DisplayPort and Thunderbolt™ video outputs up to 8K@60Hz with DSC
• 1 x VGA port from AST2600

Performance

• Intel® W880 chipset
• 4 x DIMM slots, max. 256GB DDR5 memory support up to 9066+MT/s (OC), ECC and Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• ASUS Enhanced Memory Profile III (AEMP III) for optimized performance

Storage

• Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports
• M.2_1 slot: Key M, type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot: Key M, type 2280 (supports PCIe4.0 x4 mode)
• M.2_3 slot: Key M, type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot: Key M, type 2280 (supports PCIe 4.0 x4 mode)

Connectivity

• 2 x Intel® 2.5Gb Ethernet ports
• 1 x Realtek 1Gb Ethernet port dedicated for AST2600 BIOS

Expansion Slots

• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

The ASUS Pro WS W880-ACE SE is ideal for content creation, AI and deep learning, and IT management with its robust support for dual graphics cards and advanced connectivity options.
