ASUS

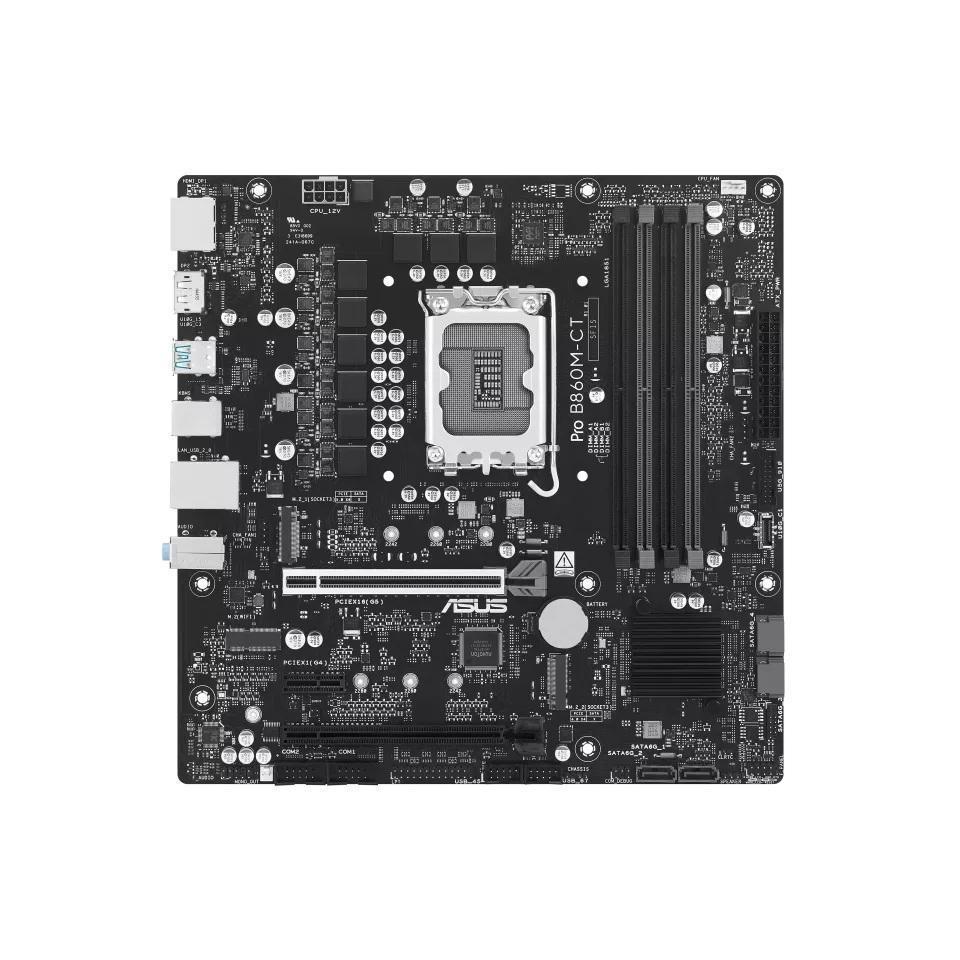

ASUS PRO B860M-CT-CSM-SI Micro-ATX Motherboard DDR5 2x M.2 PCIe 5.0
Available in stock (100)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1851 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | M.2, DIMM, PCIe, SATA |
|---|
Ports & Connectivity
| USB Standard | USB 3.1 gen 1, Other |
|---|---|
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 10 mm |
|---|---|
| Width | 10 mm |
| Height | 10 mm |
Product Details
Product Details
The ASUS PRO B860M-CT-CSM-SI is a micro-ATX motherboard designed for business computing needs with enhanced features such as comprehensive system protection and 24/7 stability. It supports the latest Intel® Core™ Ultra Processors (Series 2) and offers long-term availability, making it a reliable choice for enterprise environments.
Display
- 2 x DisplayPort: DP1 Supports max. 4K@60Hz; DP2 Supports max. 8K@30Hz as specified in DisplayPort 1.4
- 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1)
Performance
- CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851
- Turbo Boost Technology: Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel® B860 Chipset
- Memory: 4 x DIMM slots, max. 256GB DDR5; Supports up to 8666+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Dual channel memory architecture; ASUS Enhanced Memory Profile III (AEMP III)
Storage
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2_1 slot (Key M), type 2242/2260/2280, PCIe 5.0 x4 mode
- M.2_2 slot (Key M), type 2242/2260/2280, PCIe 4.0 x4 modes
- 4 x SATA 6Gb/s ports
- Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Connectivity
- Ethernet: 1 x Intel® 1Gb ASUS LANGuard (Intel® I219-V LAN)
- Wireless & Bluetooth: M.2 slot only 2230 (Key E, CNVi PCIe) - Wi-Fi module sold separately
BIOS and OS Support
- BIOs: 256 Mb Flash ROM, UEFI AMI BIOS
- Operating System: Windows 11 (version 22H2 and later), Windows 10 (version 21H2 and later)
Form Factor
- Micro-ATX Form Factor, dimensions: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
