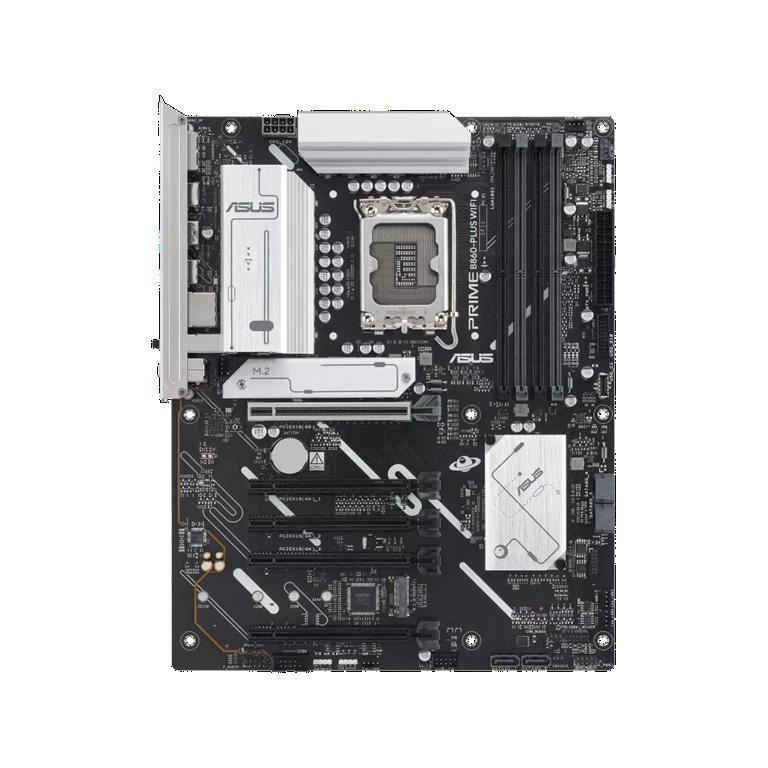

ASUS PRIME B860-PLUS WIFI-CSM ATX Motherboard 2x M.2 4x SATA WiFi 6E

The ASUS PRIME B860-PLUS WIFI-CSM is an advanced ATX motherboard designed to unleash the full potential of Intel® Core™ Ultra Processors (Series 2). It features robust power design and comprehensive cooling solutions, alongside intelligent tuning options through intuitive software and firmware.

Chipset & BIOS

• Chipset: Intel® B860
• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS

Memory Support

• Slots: 4 x DIMM slots (max. 256GB)
• Type: DDR5 (Non-ECC, Un-buffered CUDIMM)
• Data Rate: Up to 8666+MT/s (OC)
• Features: Dual channel memory architecture, ASUS Enhanced Memory Profile III (AEMP III), Intel® Extreme Memory Profile (XMP) support

Graphics & Expansion Slots

• DisplayPorts: 1 x DisplayPort, 1 x HDMI™ port, USB Type-C® supporting DisplayPort video output
• Expansion Slots:
  • Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 5.0 x16 slot
  • Intel® B860 Chipset: 1 x PCIe 4.0 x16 slot, 3 x PCIe 4.0 x1 slots

Storage

• M.2 Slots:
  • M.2_1: Key M (supports PCIe 5.0 x4 mode)
  • M.2_2: Key M (supports PCIe 4.0 x4 mode)
• SATA Ports: 4 x SATA 6Gb/s ports

Connectivity

• Ethernet: Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6E (802.11ax) 2x2, Bluetooth® v5.3

Form Factor

• Dimensions: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
