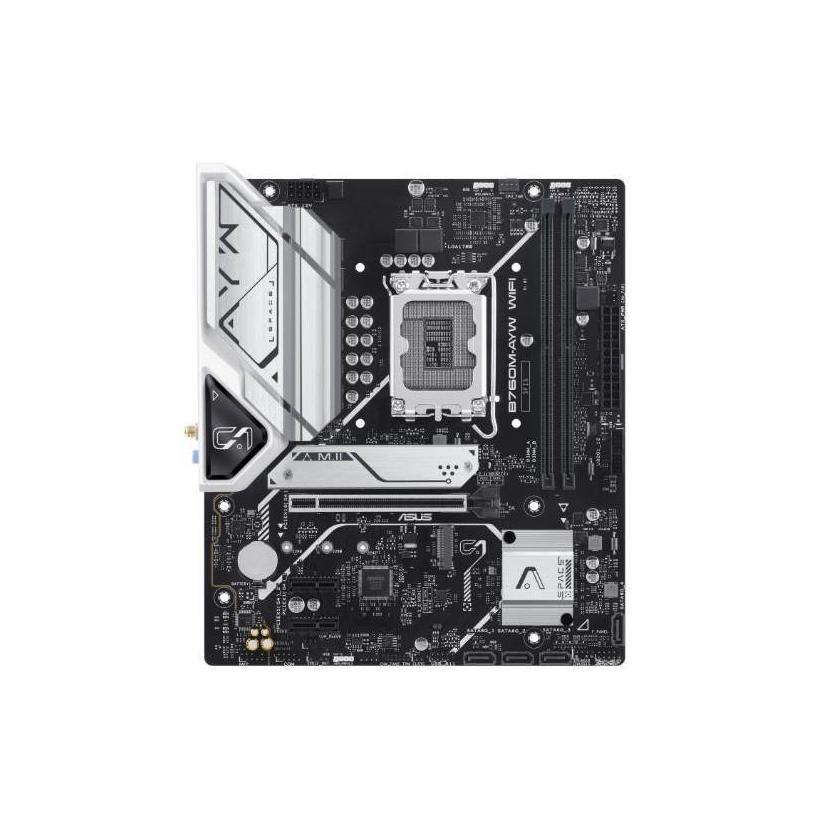

ASUS B760M-AYW WIFI DDR5 96GB mATX Motherboard PCIe 4.0 2x M.2 WiFi 6 HDMI 4K60

The ASUS B760M-AYW WIFI is a DDR5 mATX motherboard designed for advanced AI computing with robust connectivity and performance features. It supports 14th, 13th, and 12th Gen Intel processors and offers up to 96GB of memory capacity.

Display

• 1 x HDMI port (supports 4K@60Hz)

Performance

• CPU: Intel® Socket LGA 1700 for 14th, 13th, and 12th Gen Intel processors, Pentium Gold, and Celeron processors
• Memory: 2 x DIMM slots, up to 96GB DDR5 memory (supports XMP)
• Expansion Slots: 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots
• Storage: 2 x M.2 slots supporting PCIe 4.0 x4 mode, 4 x SATA 6Gb/s ports

Connectivity

• Ethernet: Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with Bluetooth v5.3

Cooling and Lighting

• VRM heatsink, M.2 heatsink, PCH heatsink
• Fan Xpert 2+ hybrid fan headers
• Aura Sync RGB lighting with Addressable Gen 2 headers

Other Features

• 128 Mb Flash ROM UEFI AMI BIOS
• Supports Windows® 11 and Windows® 10 64-bit operating systems
