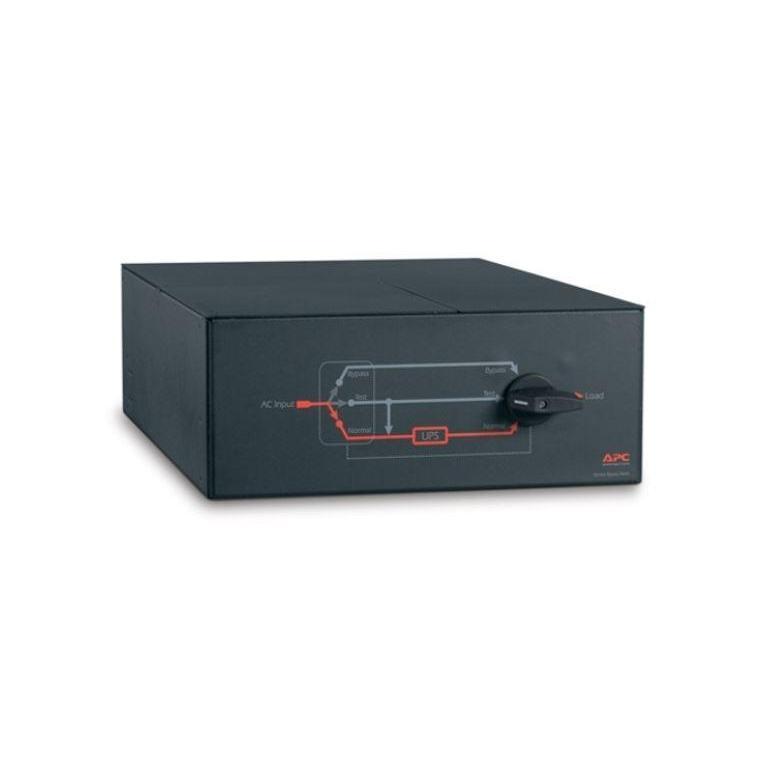

APC Service Bypass Panel 4U 230V 2x IEC C19 8x IEC C13

The APC Service Bypass Panel is designed for reliable power management in data centres and server rooms. It features a hardwire input with options for both 3-wire (1P + N + E) and 4-wire (3P + N) configurations, providing flexibility in installation.

Display

N/A

Performance

• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Network Frequency: 50/60 Hz
• Max Line Current: 100 A
• Input Current Limits: 100 A
• Load Capacity: 20,000 VA
• Power Factor: 0…1
• Max Current Draw: 100 A
• Efficiency: 99%

Storage

• Ambient Air Temperature for Storage: -40…65 °C
• Relative Humidity for Storage: 0…95 %
• Storage Altitude: 0.00…15240.00 m

Ambient Conditions

• Ambient Air Temperature for Operation: -20…50 °C
• Relative Humidity for Operation: 0…95 %
• Operating Altitude: 0...15,000 ft

Connectivity

• Main Input Connectors: 1 hard wire 3-wire (1P + N + E), 1 hard wire 4-wire (3P + N)
• Main Output Connectors: 8 IEC-320 C13, 2 IEC-320 C19

Mounting Mode

• Rack mounted

Certifications and Standards

• Product Certifications: CSA, GOST
• Standards Compliance: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Provided Equipment

• Installation guide
• Rack mounting brackets
• User manual
