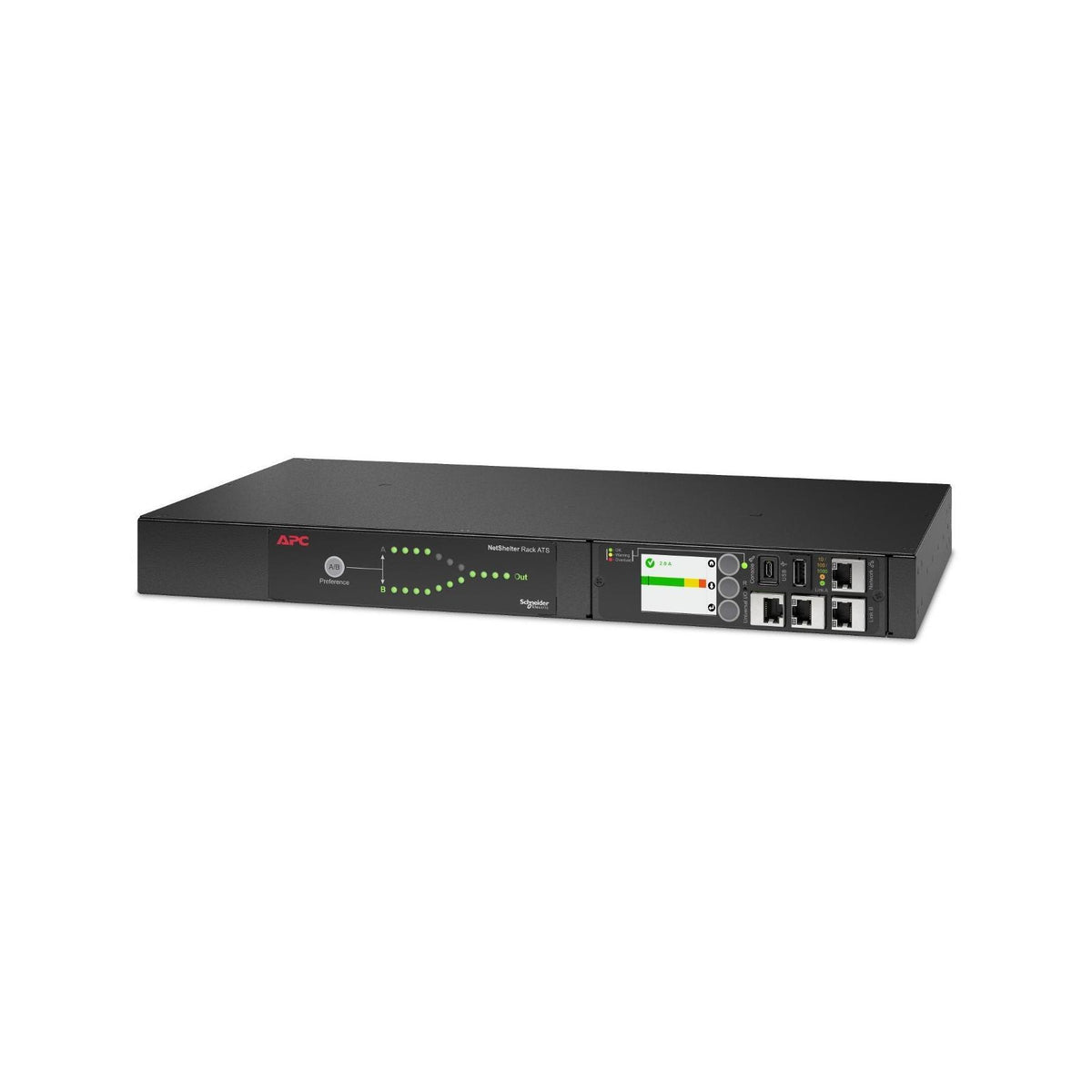

APC Rack ATS 1U 10A 230V C14 IN 12 C13 OUT

The APC NetShelter Rack Automatic Transfer Switch (ATS), model AP4421A, is a high-availability switch designed for IT racks. It offers redundant power to single-corded equipment loads and includes advanced features such as network port sharing, environmental monitoring, and enhanced security.

Performance

• Main Input Voltage: 230 V AC (1 phase)
• Main Output Voltage: 230 V AC (1 phase)
• Input Connection Type: IEC C14 (10 A, 2P + E)
• Rack Unit Size: 1U
• Rated Current: 10 A
• Permissible Voltage Range: 207–253 V
• Max Line Current: 10 A
• Load Capacity: 2000 VA
• Network Frequency: 50/60 Hz

Connectivity and Management

• Web UI, SNMP, CLI for remote access and configuration
• Compatible with EcoStruxure IT

Ports and Outlets

• 2 IEC C14 inlet sockets
• 12 IEC C13 outlet sockets (10 A, 2P + E)

Environmental Specifications

• Operating Temperature: -5 to 45 °C
• Storage Temperature: -25 to 65 °C
• Relative Humidity: 5–95%
• Operating Altitude: Up to 10,000 ft
• Storage Altitude: Up to 15,240 m

Certifications and Standards

• EN 55022 class A
• FCC part 15 class A

The APC Rack ATS AP4421A comes with a standard 2-year warranty, extendable to 5 years for long-term peace of mind.
