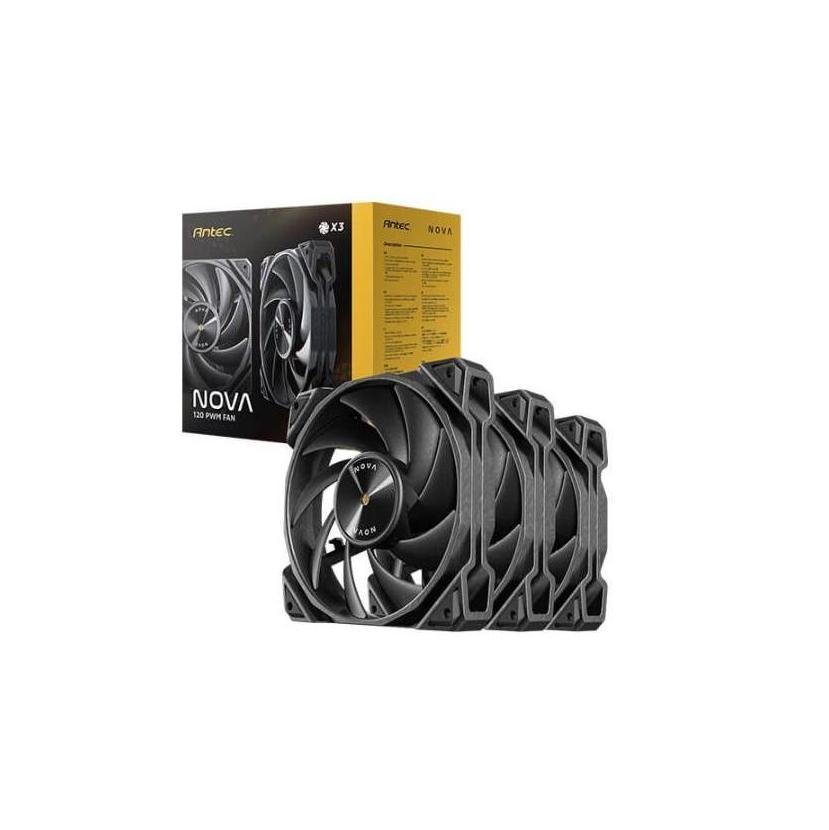

Antec Nova 120mm PWM 3-Phase Speed Controller Fan With Controller

The Antec Nova 120mm PWM fan with integrated three-phase speed controller offers versatile performance and reliability for various hardware environments. It features a six-pole drive motor that maximises output power and torque while reducing energy loss and noise.

Performance

• Fan Speed: L 300~1500±10% | M 350~2400±10% | H 400~3200±10%
• Airflow: L 44 | M 70.59 | H 95.32 CFM
• Air Pressure: L 1.48 | M 3.72 | H 6.56 mmH₂O
• Fan Noise Level: L 21.5 | M 30.8 | H 38.7 dB(A)

Specs

• Fan Model Name: NOVA 12025
• Fan Type: PWM Fan
• Dimensions: 120*120*25 mm
• Bearing Type: FDB
• Lifespan: 50,000 hours / 40℃
• Connector: 4-pin PWM
• Rated Voltage: DC 12 V
• Operation Voltage: DC 6.0-13.2 V
• Rated Current: 0.35A (MAX)

Features

• Three-phase PWM speed controller for mode switching and low signal shutdown
• Six-pole drive motor with precise closed-loop design, reducing noise and vibration
• Metal shaft for improved reliability and dynamic balance
• Neodymium magnet at the bottom of the fan frame to mitigate displacement during high-speed operation
• Dustproof design to protect internal components from dust and debris
• Exterior geometric ribs for structural enhancement and reduced resonance
