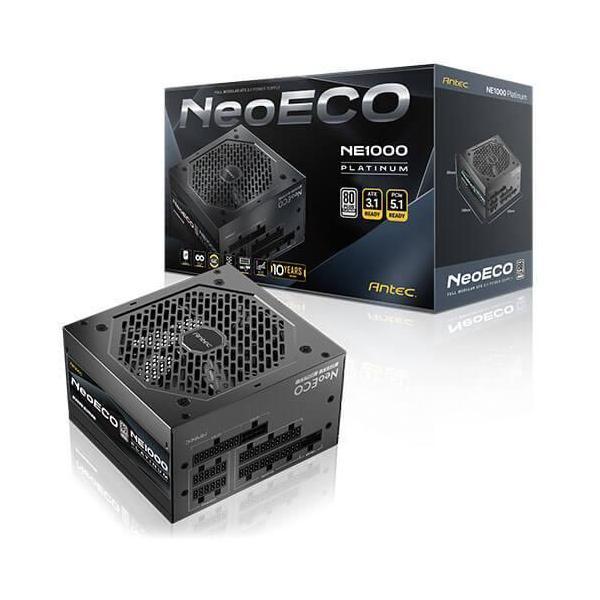

Antec NE1000P 1000W ATX 3.1 Platinum Fully-Modular PSU 120mm Fan

The Antec NE1000P AU is a high-performance power supply designed for gamers and enthusiasts. Featuring ATX 3.1 and PCIe 5.1 support, it delivers reliable power with Japanese capacitors and 80 PLUS® Platinum efficiency. The PhaseWave™ design ensures smooth output, while the 120 mm FDB silent fan provides efficient cooling.

Performance

• Type: ATX 12V 3.1
• Power Capacity: 1000W
• PFC: Active PFC
• Efficiency Rating: 80 PLUS® Platinum

Cooling and Fan Control

• Fan: 120mm FDB Silent Fan
• Zero RPM Manager: Intelligent fan control for silent operation

Connectivity

• Modular Design: Full-Modular
• Certifications: cTUVus / TUV / CB / RCM / CE / FCC / BSMI / 3C / UKCA / ICES
• Connector Types:
  • 1 x 24(20+4)pin MB
  • 1 x 16(12+4)pin PCIE 5.1 12V-2x6
  • 2 x 8(4+4)pin CPU
  • 3 x 8(6+2) Pin PCI-E
  • 9 x SATA
  • 3 x Molex

Warranty and Specifications

• Dimensions: 140(L)*150(W)*86(H)
• Input Voltage Range: 100V-240V
• Input Current: 12A-6A
• Input Frequency Range: 50Hz-60Hz
• Operation Temperature: 0~40°C
• Protection Features: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
• Warranty: 10 years
