Alloy

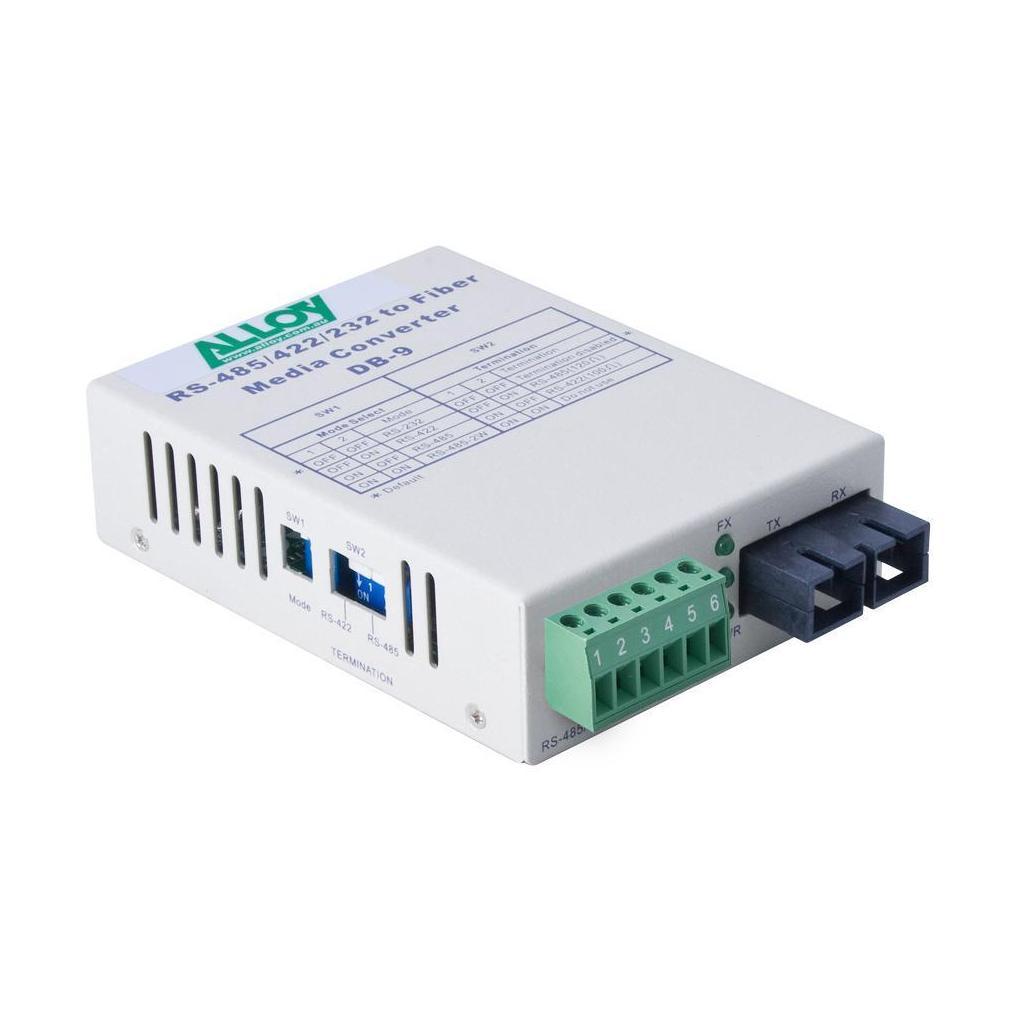

Alloy SCR460SC-2 RS-232/422/485 Serial Terminal to Multimode Fibre Converter....
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 308 mm |
|---|---|
| Width | 140 mm |
| Height | 70 mm |
Product Details
Product Details
The Alloy SCR460SC-2 is a versatile serial over fibre media converter designed for use either as a standalone device or installed in an Alloy DCR12 Series 12-slot Media Converter Rackmount Chassis. It supports RS-232, RS-422, and RS-485 protocols through a triple mode circuit terminal block and provides data transmission over multimode fibre up to 2 kilometres.
Display
- No display features
Performance
- Auto baud rate detection (up to 460.8K)
- Direction control functions
- High EMI and EMS immunity
Connectivity
- RS-232/422/485 serial terminal block (triple mode circuit support)
- SC terminated multimode fibre port with up to 2Km range
- DB-9 or Terminal Block options for copper serial cabling
- ST or SC fibre connectors available in other models of the SCR Series
Features
- Plug-and-play RS-232/RS-422/RS-485 support
- 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
- Dual purpose: standalone or rackmount use
Build Quality
- Compact and rugged all-metal case design
Warranty
Warranty
Manufacturer warranty 36 Months
