Alloy

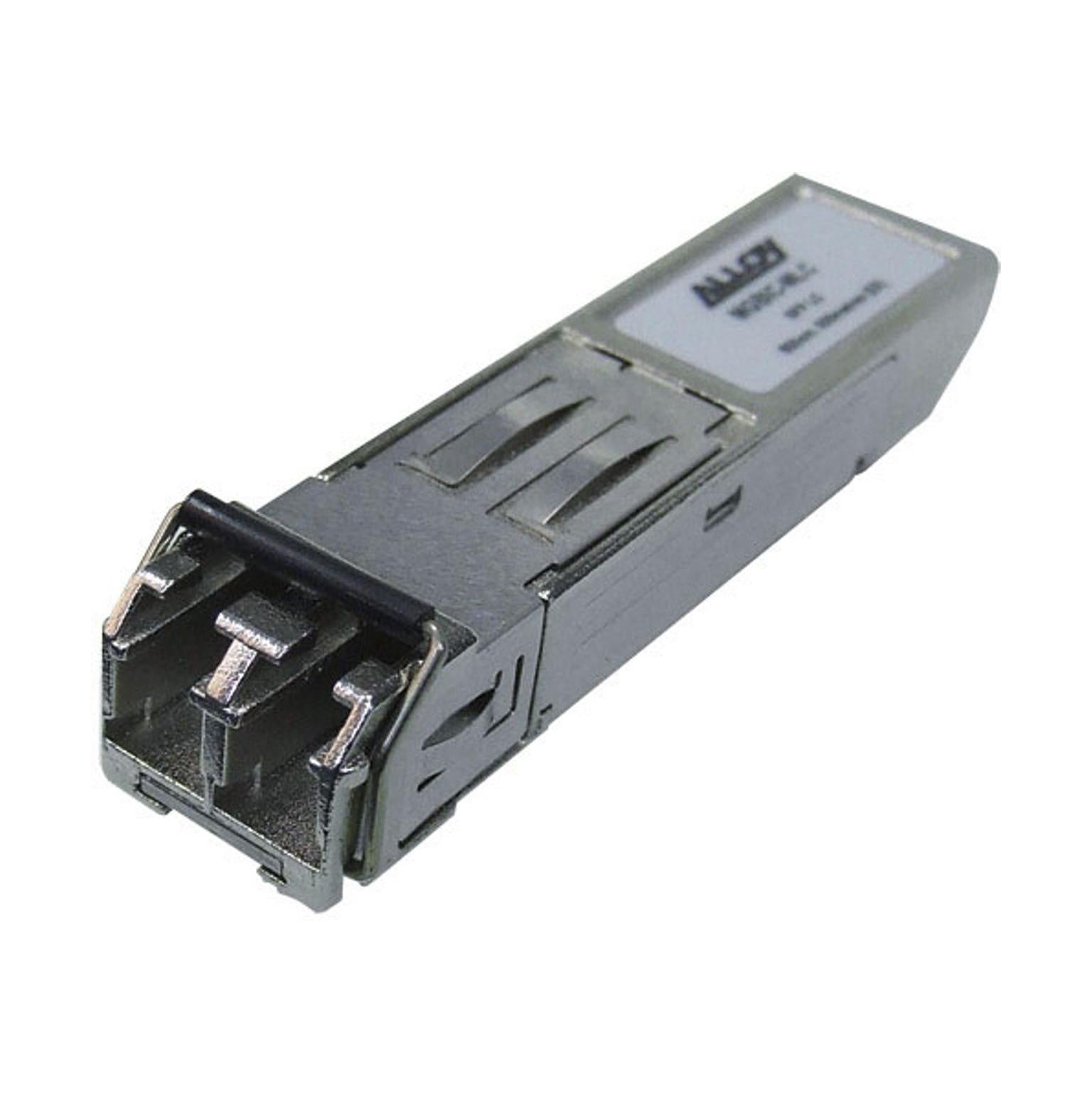

Alloy IMGBIC-MLC Industrial Mini-GBIC MMF 550m 850nm
Hurry up, only 3 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 52 mm |
|---|---|
| Width | 10 mm |
| Height | 4 mm |
Product Details
Product Details
The Alloy IMGBIC-MLC is an industrial mini-GBIC module designed for multimode fibre (MMF) applications with a wavelength of 850nm and a transmission distance of up to 550 metres on 50/125µm MMF. It supports the Ethernet Direct Industrial Devices range, offering reliable data transfer in harsh environments due to its wide operating temperature range from -40°C to +85°C.
Features
- Up to 1.25Gb/s bi-directional data links
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 standards
- Duplex LC receptacle
- RoHS compliant
- +3.3V single power supply
Performance
- Data transfer rate: Up to 1.25Gb/s bi-directional
Connectivity
- Laser type: 850nm VCSEL laser
- Photodetector: PIN photodetector
- Fibre type: Multimode fibre (MMF)
- Transmission distance: Up to 550m on 50/125µm MMF, up to 220m on 62.5/125µm MMF
- Connector type: Duplex LC receptacle
Environmental
- Operating temperature range: -40°C to +85°C
Power Supply
- +3.3V single power supply
Warranty
Warranty
Manufacturer warranty 36 Months
