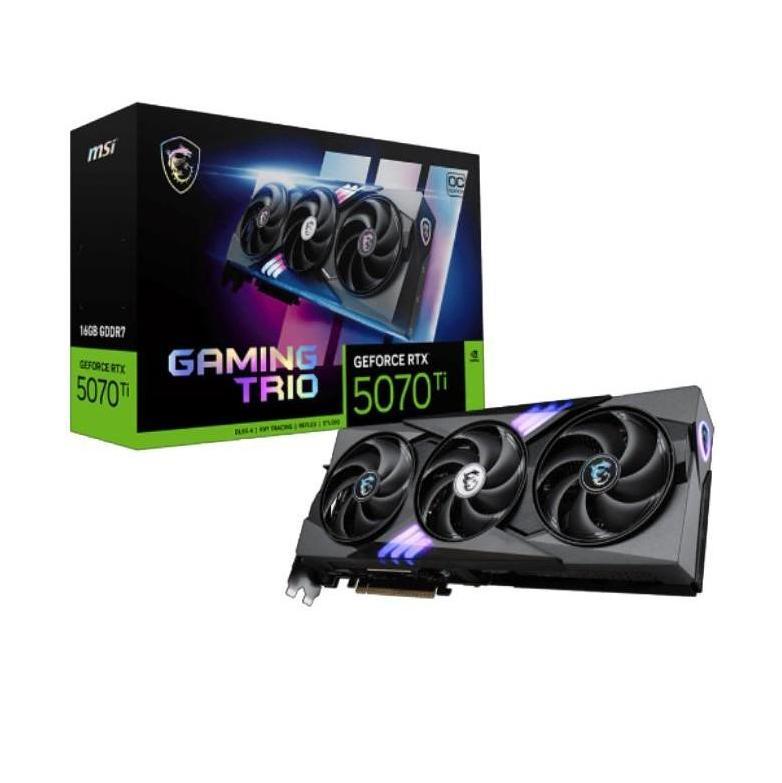

MSI nVidia GeForce RTX™ 5070 Ti 16G GAMING TRIO OC PCI Express® en 5 Boost: 2...

The MSI nVidia GeForce RTX™ 5070 Ti 16G GAMING TRIO OC is a high-performance graphics card designed for gaming and professional workloads. It features an NVIDIA® GeForce RTX™ 5070 Ti GPU with PCI Express® Gen 5 interface, delivering superior performance and efficiency.

Display

• DisplayPort x 3 (v2.1b)
• HDMI™ x 1 (HDCP Support Y)

Performance

• Core Clocks: Extreme Performance: 2580 MHz (MSI Center), Boost: 2572 MHz (GAMING SILENT Mode)
• CUDA® CORES: 8960 Units
• Memory Speed: 28 Gbps
• Memory: 16GB GDDR7
• Memory Bus: 256-bit
• Dual BIOS for performance or silent mode control

Connectivity and Support

• Maximum Displays: 4
• G-SYNC® technology Y
• Digital Maximum Resolution: 7680 x 4320
• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6

Cooling and Design

• TRI FROZR 4: Upgraded fans, airflow control, and thermal design for superior cooling and quieter operation.
• STORMFORCE FAN: Seven fan blades with claw texturing and a circular arc for optimal airflow with minimal noise.
• Nickel-plated Copper Baseplate: Swiftly captures heat from the GPU and memory.
• Core Pipes: Square design maximizes contact with the GPU baseplate for optimal thermal management.
• Metal Backplate: Reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: V-shaped cutout and high-low design at the airflow passthrough to optimize flow efficiency.

Software

• MSI Center: Exclusive software for monitoring, tweaking, and optimizing MSI products in real-time.
• AFTERBURNER: Widely used graphics card overclocking software offering full control over the GPU.

Power Specifications

• Power consumption: 300 W
• Power connectors: 16-pin x 1
• Recommended PSU: 750 W

Dimensions and Weight

• Card Dimension (mm): 338 x 140 x 50 mm
• Weight (Card / Package): 1296 g / 1819 g
