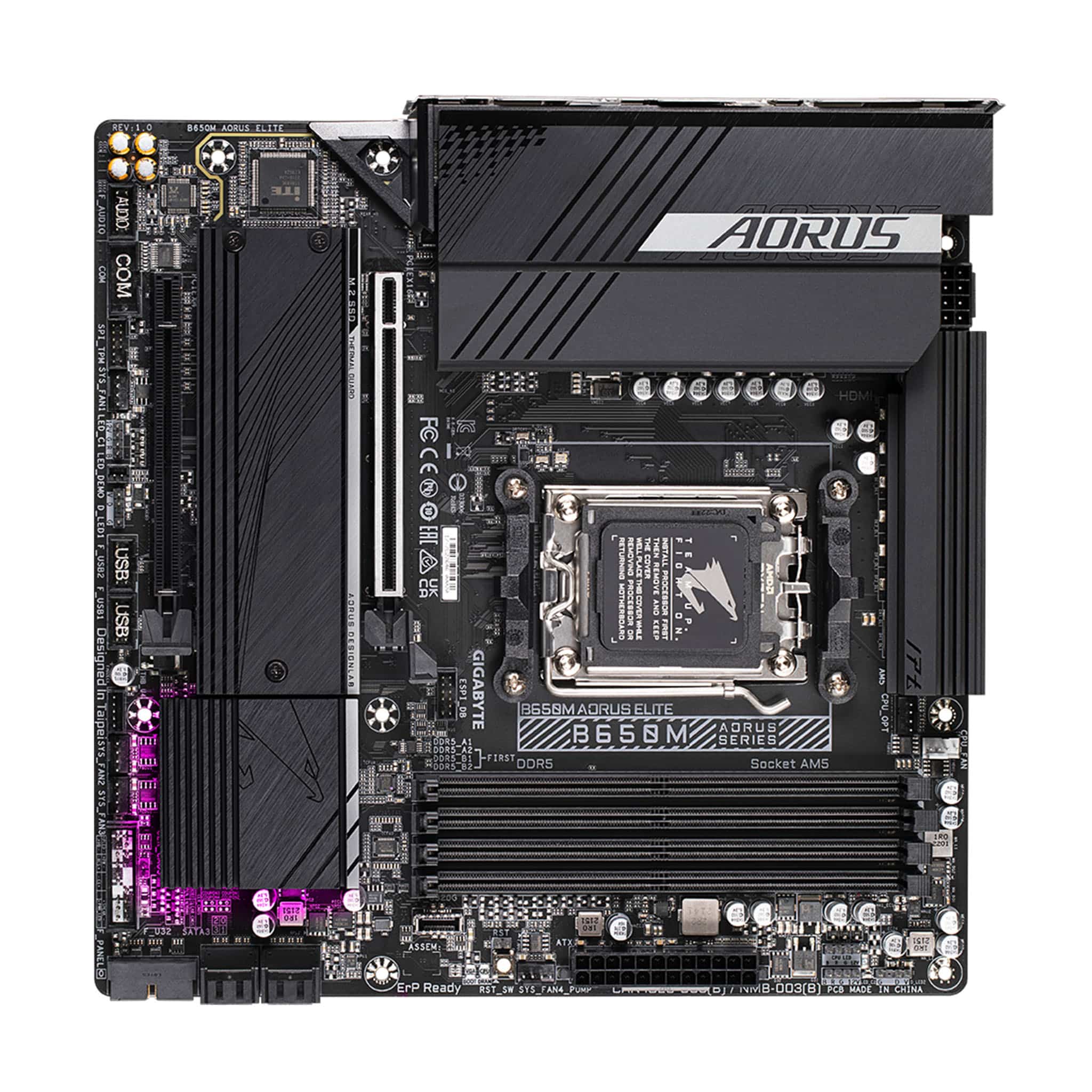

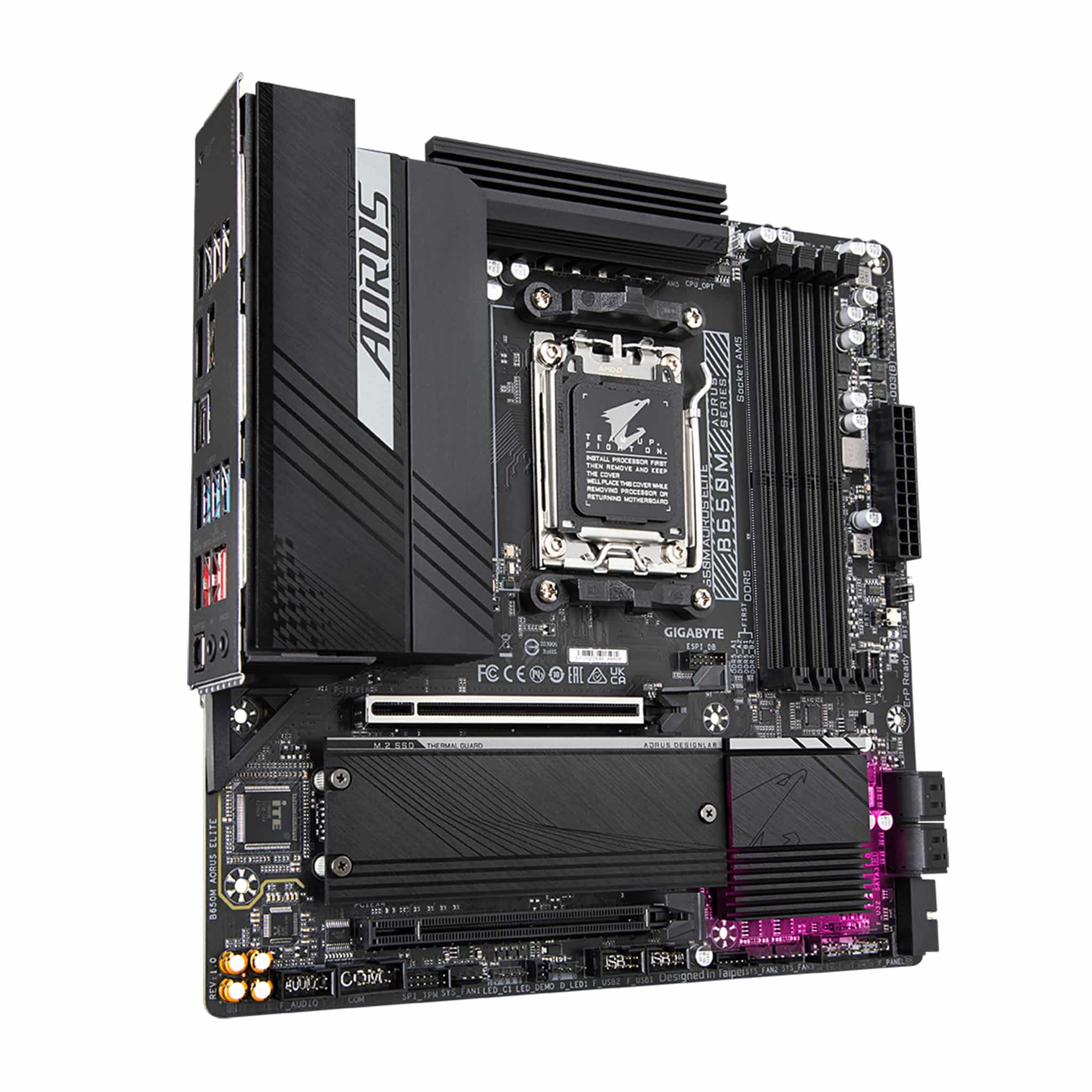

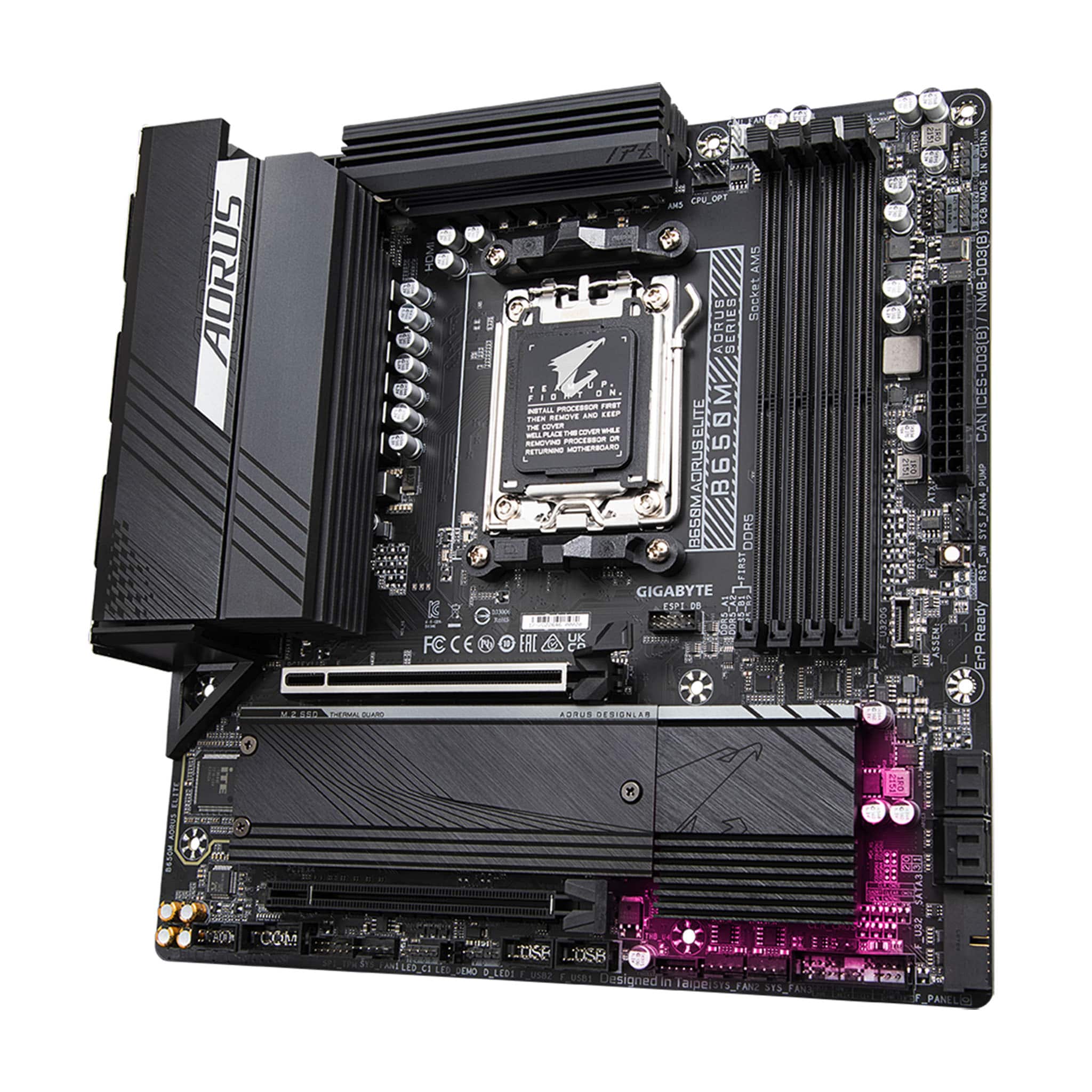

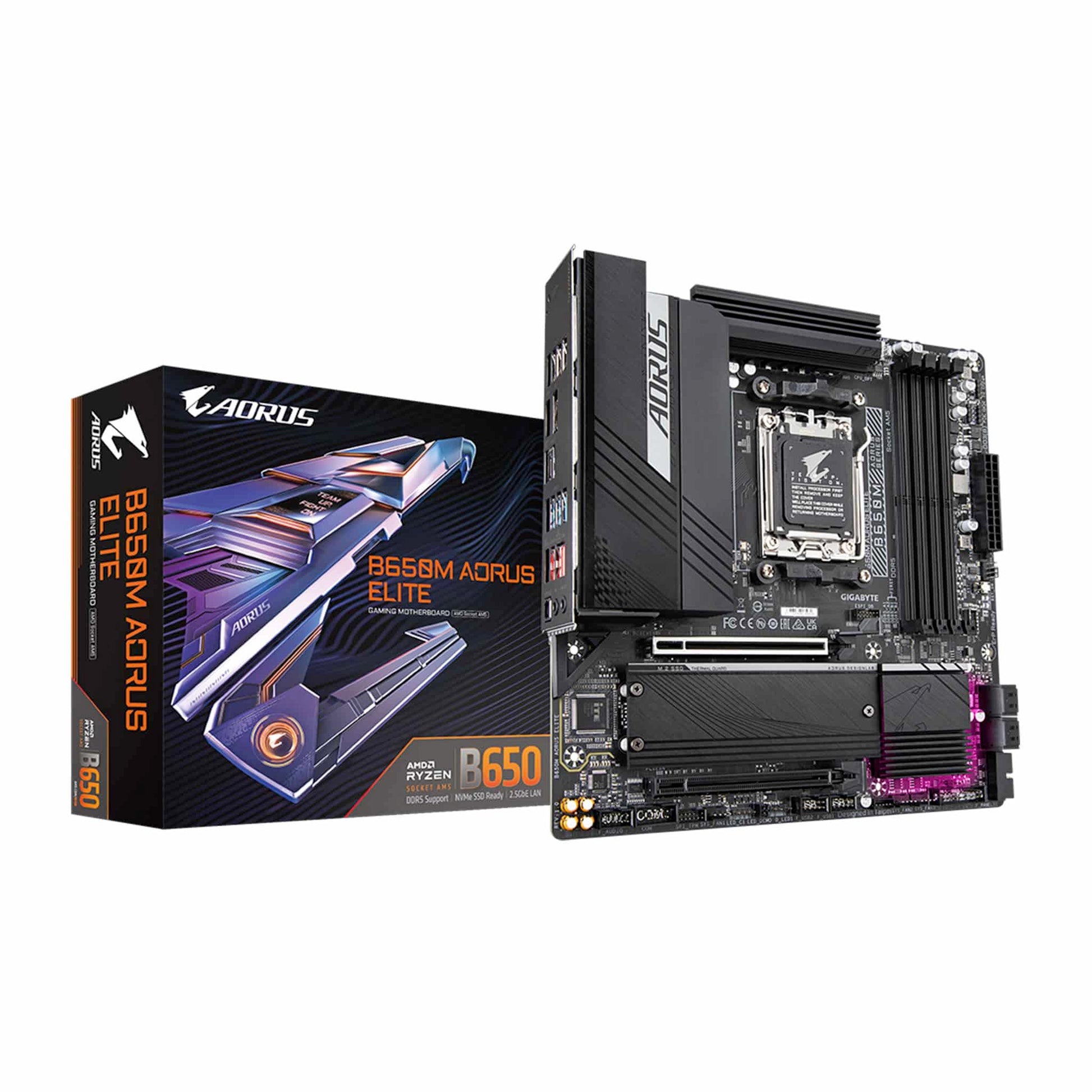

Gigabyte B650M Aorus Elite DDR5 AM5 microATX Motherboard

A NEW ERA IS COMING DAYBREAK HOUR B650M AORUS ELITE AX

Unparalleled Performance

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Twin Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equips the best VRM design ever built with the highest quality components.

Ultra Durable™ SMD PCIe 5.0 x4 M.2 Connector

The first PCIe 5.0 x4 M.2 Slot supports the latest M.2 25110 form factor. It doubles the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge M.2 SSDs released in next few years.

DDR5 EXPO & XMP Overclocking Up to 6666 and Beyond*

AORUS is offering a tested and proven platform that the memory overclocking capability is able up to 6666 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their AORUS motherboard.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference

EXPO and XMP Dual Support

GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

AMD EXPO™ and Intel® XMP 3.0 User Profile

Define and create your own SPD profile into Native, EXPO and XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

Outstanding Thermal Design

GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Fully Covered Thermal Design

Real One-piece Build

TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

3X Large Surface

Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.

Multi-Cut Design

Both TMOS & RMOS heatsinks with multiple channels and inlets featured which lead the air flow going through more efficiently and cause a great improvement of heat transfer performance.

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

8-Layer & 2X Copper PCB

2X COPPER PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

GIGABYTE Ultra-Efficient M.2 Thermal Guard

With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

3% Cooler by implementing
2X copper PCB Design

By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

SMART FAN 6

Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users' specified temperature point

Connectivity

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage connectivity.

First adopter on 2.5GbE LAN onboard

2X Faster than ever

1. Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - Front USB 3.2 Gen 2x2 Type-C®

Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Connecting the Future - Rear USB3.2 Gen 2 Type-C^®

AMD's native USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen 1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

High-End Audio Capacitors

AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Personalization

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

RGB Fusion Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

• Cycle Color
• Static
• Pulse
• Flash
• Double Flash
• Music
• Random
• Game
• Digital A
• Digital B
• Digital C

UEFI BIOS

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

Multi-key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

• • RGB Switch: Turn off all lighting effect on motherboard.
  • Direct-To-BIOS: Boot into BIOS menu directly without pressing any keyboard button.
  • Safe Mode: Boot into BIOS safe mode to change specific option without losing other BIOS settings.

Ultra Durable

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

PCIe EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory and graphics card.

With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
